Here are the standard dimensions available for our I-Beam shaped aluminum extrusions.
All dies subject to verification.

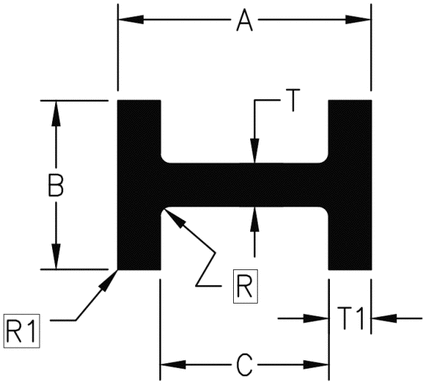

DIE # A B C T T1 R R1 WT/FT PERIM SPECIAL NOTES
3748 0.312 0.656 0.222 0.062 0.045 0.01 0.015 0.088 3.111 -
4462 0.437 1 0.25 0.188 0.093 0.01 0.01 0.28 4.498 -
488 0.5 0.968 0.375 0.281 0.062 0.015 0.015 0.271 4.31 -
2015 0.615 0.812 0.525 0.045 0.045 0.015 0.015 0.116 4.388 -
5779 0.906 1.312 0.782 0.062 0.062 0.01 0.01 0.254 6.936 -
3260 1 1.187 1 0.055 0.055 0.01 0.01 0.203 6.263 -
1917 1.148 1 1.048 0.05 0.05 0.01 0.025 0.181 6.146 -
11391 1.22 1.92 0.97 0.18 0.13 0.015 0.015 0.786 9.76 -
9802 1.25 1.25 1.074 0.088 0.088 0.047 0.01 0.379 7.243 -
10449 1.496 3.15 1.102 0.315 0.197 0.015 0.015 1.906 14.962 -
8215 1.5 1 1.25 0.125 0.125 0.01 0.01 0.488 6.75 -
7257 1.5 2.045 1.41 0.045 0.045 0.015 0.015 0.296 11.09 -
1254 1.73 0.365 1.62 0.063 0.055 0.01 0.01 0.17 4.794 -
1759 1.74 1.25 1.628 0.056 0.056 0.01 0.01 0.277 8.368 -
10448 1.969 3.15 0.985 0.394 0.492 0.01 0.01 4.186 15.75 -
5320 2 2 1.87 0.065 0.065 0.015 0.055 0.455 11.776 -
5208 2.375 1.5 2.125 0.125 0.125 0.01 0.01 0.769 7.5 -
2188 3.124 2 3 0.125 0.062 0.01 0.01 0.748 13.752 -
2867 3.53 0.5 3.406 0.062 0.062 0.01 0.01 0.328 8.936 -
16335 8 8.125 6.846 0.5 0.577 0.313 0.179 13.414 45.911 -

Custom orders available upon request.

For pricing:
Email our sales department, use our Request for Quote online form or call 1-940-564-5681.
