Die Profile
‘Z’ Shape

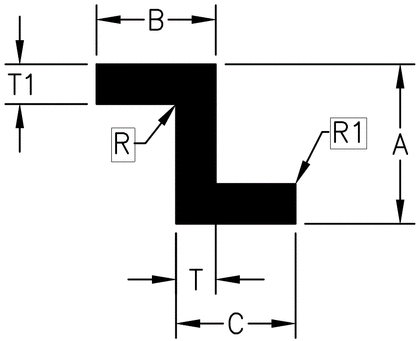

Offset profile used in framing transitions, panel connections, and architectural systems. Tower’s Z shapes are extruded to precise tolerances and available in a range of leg dimensions and material thicknesses.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
8015
0.437
0.5
0.5
0.062
0.062
0.01
0.01
0.097
2.697
Olney
9593
1
1.125
0.75
0.125
0.125
0.063
0.125
0.382
5.244
Olney
1997
1.125
1.375
1.375
0.084
0.11
0.031
0.015
0.539
8.089
Olney
2222
1.25
1
1
0.125
0.125
0.01
0.01
0.45
6.25
Olney
4518
1.5
0.938
1.125
0.078
0.094
0.062
0.01
0.358
6.917
Olney
11218
1.5
1.75
1
0.25
0.25
0.015
0.015
1.2
8.5
Olney
15215
1.5
1.188
1.188
0.085
0.115
0.07
0.058
0.455
7.37
Olney
3578
1.531
1.187
1.625
0.125
0.125
0.01
0.01
0.614
8.436
Olney
17129
1.75
1.75
1.75
0.188
0.188
0.188
0.125
1.088
9.855
Olney
1256
1.875
0.75
0.75
0.125
0.125
0.01
0.01
0.469
6.5
Olney
1871
2
1.25
1.25
0.064
0.064
0.01
0.01
0.368
9.364
Olney
1738
2
1.25
1
0.125
0.125
0.01
0.01
0.592
8.144
Olney
11492
2
2.25
1.25
0.25
0.25
0.062
0.015
1.577
10.947
Olney
12975
2.25
1.515
1.515
0.188
0.188
0.188
0.188
1.106
9.861
Olney
17128
2.375
1.25
1.25
0.188
0.188
0.188
0.125
1.004
9.109
Olney
17127
3
2.688
2.688
0.25
0.25
0.313
0.25
2.333
15.769
Olney
6207
3
2.687
2.687
0.25
0.25
0.312
0.25
2.381
15.766
Olney
18110
3
1.5
1.5
0.125
0.125
0.015
0.015
0.863
18.625
Olney
1825
3
2.687
2.687
0.375
0.375
0.375
0.375
3.431
15.032
Olney
12435
3.25
1.5
1.5
0.125
0.125
0.062
0.125
0.887
11.973
Olney
12964
3.5
1.515
1.515
0.188
0.188
0.188
0.188
1.388
12.361
Olney
12650
3.5
1.5
1.5
0.125
0.125
0.063
0.125
0.924
12.481
Olney
12436
4
1.5
1.5
0.125
0.125
0.062
0.125
1
13.473
Olney
12656
4.125
1.5
1.5
0.156
0.125
0.063
0.125
1.17
13.759
Olney
12976
4.25
1.515
1.515
0.188
0.188
0.188
0.188
1.558
13.861
Olney
12657
4.25
1.5
1.5
0.156
0.125
0.063
0.015
1.194
14.009
Olney
12437
4.5
1.5
1.5
0.125
0.125
0.062
0.125
1.074
14.473
Olney
12658
4.75
1.5
1.5
0.156
0.125
0.063
0.125
1.288
15.009
Olney
16171
5.5
1.5
1.5
0.188
0.125
0.062
0.125
1.621
16.347
Olney
12965
5.5
1.5
1.75
0.188
0.188
0.188
0.188
1.889
16.801
Olney
12438
6
1.5
1.5
0.188
0.125
0.062
0.125
1.734
17.347
Olney
12966
7.5
1.75
1.75
0.188
0.188
0.188
0.188
2.396
21.301
