Unequal Leg Channel

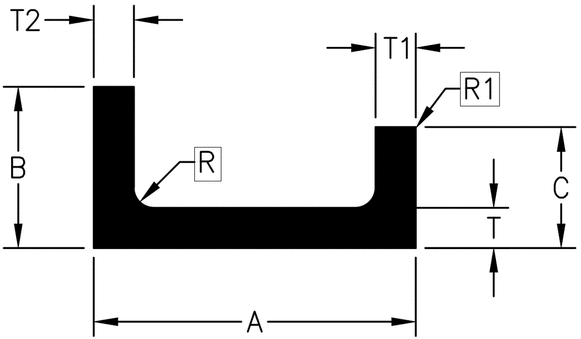

Asymmetrical channel profile used where offset support or clearance is required. Tower’s unequal leg channels are extruded to precise tolerances and available in a variety of leg depths and wall thicknesses.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
446
0.492
1
0.5
0.055
0.055
0.055
0.01
0.122
3.782
Olney
16037
0.615
0.753
0.428
0.062
0.05
0.062
0.015
0.119
3.433
Olney
14494
0.685
1
0.685
0.055
0.055
0.015
0.015
0.148
4.587
Olney
15343
1.5
1.438
0.25
0.25
0.25
0.015
0.015
1.163
8.264
Olney
17279
1.61
1.437
1.17
0.125
0.125
0.125
0.015
0.592
8.114
Olney
3221
2.25
3
1.812
0.063
0.063
0.063
0.01
0.524
14
Olney
3383
4.437
1.5
0.75
0.125
0.125
0.125
0.016
0.966
13.124
Olney
13429
5.75
7
2.5
1
0.75
0.75
0.031
13.649
28.394
Schedule 5 Pipe
Schedule 10 Pipe
Schedule 40 Pipe
Schedule 80 Pipe
