Die Profile
Unequal Leg Angle Structural

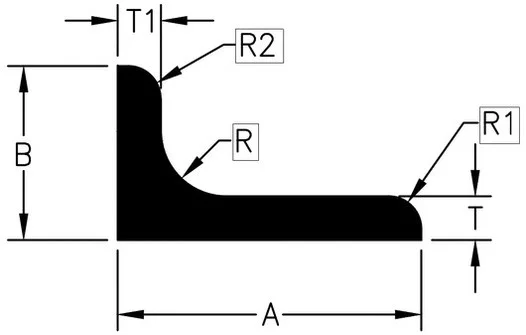

Heavy-duty right-angle profile used in structural and load-bearing applications. Tower’s unequal leg structural angles are extruded to precise tolerances and designed for strength where unequal support is required.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
14036
1
0.625
0.125
0.125
0.093
0.062
0.062
0.226
3.157
Olney
13496
1.5
1.25
0.188
0.188
0.188
0.125
0.125
0.58
5.312
Olney
18702
1.5
1
0.25
0.25
0.13
0.13
0.13
0.671
4.833
Olney
7891
2
1.5
0.187
0.187
0.125
0.187
0.187
0.73
6.786
Olney
14958
2
1.5
0.25
0.25
0.188
0.125
0.125
0.976
6.812
Olney
14227
2
1.5
0.25
0.25
0.188
0.125
0.125
0.976
6.812
Olney
15618
2
1.5
0.25
0.25
0.25
0.125
0.125
0.983
6.785
Olney
7888
2.5
2
0.25
0.25
0.125
0.25
0.25
1.247
8.732
Olney
10107
2.5
2
0.188
0.188
0.25
0.125
0.125
0.98
8.785
Olney
15619
2.5
2
0.25
0.25
0.25
0.125
0.125
1.283
8.785
Olney
10247
2.5
2
0.188
0.188
0.25
0.125
0.125
0.98
8.785
Olney
13406
2.5
1.5
0.25
0.25
0.25
0.125
0.125
1.133
7.785
Olney
16396
3
2
0.25
0.25
0.188
0.015
0.015
1.416
9.758
Wylie
1007
3
2
0.25
0.25
0.312
0.188
0.188
1.432
9.705
Olney
3712
3
2
0.187
0.187
0.312
0.187
0.187
1.087
9.706
Wylie
2094
3
2
0.375
0.375
0.313
0.188
0.188
2.088
9.684
Olney
7293
4
2.5
0.25
0.25
0.125
0.125
0.125
1.859
12.678
Wylie
2595
4
2.5
0.25
0.25
0.375
0.25
0.25
1.878
12.614
Olney
20087
5
3
0.375
0.375
0.313
0.375
0.375
3.384
15.544
Wylie
2444
5
3
0.187
0.187
0.187
0.187
0.187
1.745
15.731
Olney
20087
5
3
0.375
0.375
0.313
0.375
0.375
3.384
15.544
Olney
13916
5
3
0.312
0.312
0.25
0.25
0.25
2.862
15.657
Olney
3359
5
3.5
0.312
0.312
0.438
0.312
0.312
3.065
16.547
Olney
7770
6
3.5
0.375
0.375
0.125
0.281
0.281
4.069
18.652
Olney
11676
8
4
0.438
0.5
0.25
0.032
0.25
6.341
23.732
Olney
12745
8
3
0.313
0.313
0.5
0.015
0.015
4.079
21.785
Olney
10205
10
3.25
0.312
0.375
0.5
0.01
0.01
5.13
25.715
