Die Profile
‘T’ Shape
Structural connector profile used in framing, bracing, and support applications. Tower’s T shapes are extruded to precise tolerances and available in multiple stem and flange configurations.

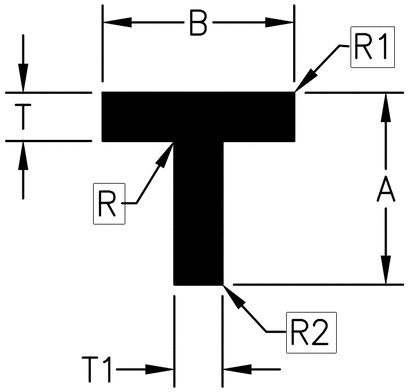

Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
4329
0.47
2
0.15
0.43
0.093
0.015
0.015
0.529
4.86
Olney
8676
0.83
4
0.15
0.15
0.125
0.075
0.075
0.965
9.36
Olney
6060
0.88
1.5
0.25
0.25
0.01
0.01
0.01
0.639
4.76
Olney
533
1
1
0.125
0.125
0.01
0.01
0.01
0.281
4
Olney
8819
1.25
1.25
0.125
0.125
0.01
0.01
0.01
0.356
5
Olney
9869
1.438
4
0.188
0.188
0.125
0.01
0.01
1.193
10.769
Olney
6341
1.5
1.5
0.25
0.25
0.01
0.01
0.01
0.825
6
Olney
8820
1.5
1.5
0.125
0.125
0.01
0.01
0.01
0.431
3
Olney
3407
2
2
0.25
0.25
0.016
0.016
0.016
1.126
8
Olney
4329
2
0.47
0.15
0.43
0.093
0.015
0.015
0.529
4.86
R3- .093
Olney
1186
2.5
3
0.188
0.188
0.01
0.01
0.01
1.199
11
Olney
15678
2.906
2.75
0.156
0.25
0.015
0.015
0.015
1.339
11.26
Olney
3847
3
3
0.25
0.25
0.01
0.01
0.01
1.726
12
Olney
16892
4
2
0.25
0.25
0.015
0.015
0.015
1.726
12
Olney
2136
4
4
0.406
0.406
0.25
0.015
0.015
3.732
15.786
Olney
2489
4
4
0.25
0.25
0.25
0.01
0.125
2.317
15.466
Olney
8676
4
0.83
0.15
0.15
0.125
0.075
0.075
0.841
9.36
Olney
16893
5
2
0.25
0.25
0.015
0.015
0.015
2.026
14
Olney
15082
5
3.25
0.375
0.375
0.015
0.015
0.015
3.544
16.5
Olney
17623
5
2
0.375
0.375
0.015
0.015
0.015
2.981
14
Olney
15078
5
7
0.375
0.375
0.015
0.015
0.015
5.232
23.987
Olney
9972
5.75
2.75
0.25
0.21
0.125
0.01
0.01
2.219
16.893
Olney
17401
6
2
0.25
0.25
0.015
0.015
0.015
2.326
16
Olney
2412
6
5
0.375
0.375
0.25
0.01
0.01
4.813
21.787
Olney
17057
6.814
6
0.375
0.313
0.375
0.015
0.015
5.186
25.306
Olney
14424
7.5
5
0.625
0.375
0.47
0.015
6.882
24.25
*.250 Cham.
