Die Profile

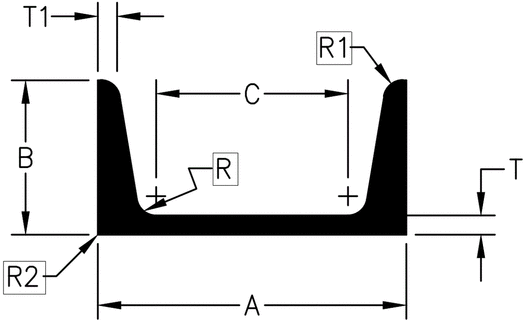

Structural Channel
Heavy-duty channel profile used in structural framing and industrial support systems. Tower’s structural channels are extruded to precise tolerances and designed for strength, durability, and consistent performance.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
14798
3
1.75
0.819
0.438
0.438
0.25
0.438
3.701
11.137
Olney
9844
3
1.41
1.788
0.17
0.17
0.27
0.1
1.482
10.694
Light
Olney
11927
3
1.41
1.75
0.17
0.17
0.27
0.1
1.417
10.706
Light
Wylie
811
3
1.41
1.79
0.17
0.17
0.27
0.1
1.468
10.729
Olney
13925
3
1.498
1.75
0.258
0.17
0.27
0.1
1.799
10.854
Medium
Olney
15159
3
1.596
1.75
0.356
0.17
0.27
0.1
2.117
11.079
Heavy
Olney
20083
3.5
1.75
1.365
0.5
0.438
0.25
0.312
4.088
12.05
Olney
1630
4
1.58
2.75
0.18
0.18
0.28
0.11
1.884
13.307
Light
Wylie
1468
4
1.647
2.75
0.247
0.18
0.28
0.11
2.155
13.481
Olney
13926
4
1.72
2.75
0.32
0.18
0.28
0.11
2.506
13.627
Heavy
Olney
8847
5
1.75
3.605
0.19
0.19
0.29
0.11
2.351
15.894
Light
Olney
15506
5
1.75
3.609
0.19
0.19
0.29
0.11
2.363
15.912
Light
Olney
8718
5
1.885
3.566
0.22
0.325
0.29
0.11
3.265
16.194
Medium
Wylie
1701
5
1.75
3.615
0.25
0.19
0.28
0.11
2.371
15.874
Olney
15905
6
2.75
5.5
0.25
0.25
0.25
0.25
3.3
22.071
Olney
12894
6
1.92
4.5
0.2
0.2
0.3
0.12
2.905
18.497
Light
Olney
15531
6
1.945
4.518
0.225
0.2
0.3
0.12
3.002
18.562
Medium
Olney
12749
6
2.034
4.5
0.314
0.2
0.3
0.12
3.726
18.727
Med. Heavy
Wylie
1467
6
1.92
4.5
0.2
0.2
0.3
0.12
2.905
18.497
Olney
12946
6.313
1.92
4.831
0.2
0.2
0.3
0.2
2.95
19.092
Olney
8955
8
2.527
6.25
0.487
0.22
0.32
0.13
6.736
24.183
Heavy
Olney
13753
8
2.29
6.338
0.25
0.22
0.32
0.13
4.339
23.777
Light
Olney
13538
8
2.25
6.31
0.188
0.321
0.375
0.062
3.862
23.706
Olney
15532
8
2.29
6.338
0.25
0.22
0.32
0.13
4.252
23.777
Light
Olney
13586
9
2.485
7.25
0.285
0.23
0.33
0.14
5.287
26.428
Olney
14821
10
3.033
8.159
0.673
0.14
0.34
0.14
10.579
29.787
Heavy
Olney
14832
10
2.6
8.159
0.24
0.24
0.34
0.14
5.387
28.921
Light
Olney
14038
12
2.96
10
0.3
0.28
0.38
0.17
7.4
34.161
Light
