Die Profile

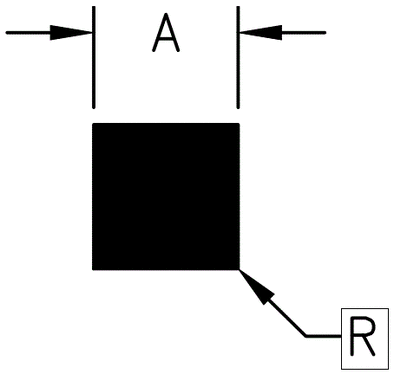

Square Bar
Solid square profile used in machining, tooling, and structural applications. Tower’s square bars are extruded to precise tolerances and available in multiple sizes for consistent fabrication results.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
6034
0.25
0.062
0.071
0.894
Olney
7681
0.375
0.015
0.169
1.5
Olney
3465
0.5
0.015
0.3
2
Olney
8427
0.8
0.1
0.757
3.028
Olney
3065
1
0.01
1.2
4
Wylie
2383
1.5
0.031
2.699
5.947
Olney
2326
1.5
0.01
2.7
6
Olney
5888
1.75
0.01
3.676
7
