Schedule Pipe

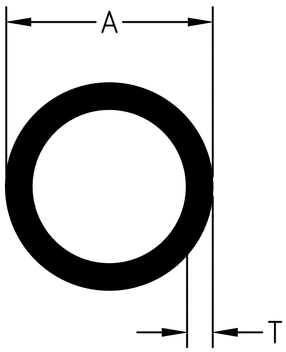

Standardized round hollow profile used across structural, industrial, and fluid-handling applications. Tower’s schedule pipe is extruded to precise tolerances and available in common pipe sizes with consistent wall thicknesses.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
7178
1.66
0.065
0.39
10.016
Schedule 5 Pipe
" 1 1/8"" sch. pipe"
Olney
19282
3.5
0.083
1.069
21.47
Schedule 5 Pipe
" 3"" sch. pipe "
Olney
13002
1.66
0.109
0.637
9.745
Schedule 10 Pipe
" 1 1/4"" sch. Pipe"
Olney
6386
1.9
0.109
0.736
11.253
Schedule 10 Pipe
" 1 1/2"" sch. Pipe"
Olney
9677
4.5
0.12
1.981
27.52
Schedule 10 Pipe
" 4"" sch. Pipe"
Olney
5621
0.54
0.088
0.15
2.839
Schedule 40 Pipe
" 1/4"" sch. Pipe
Olney
7657
0.84
0.109
0.3
4.514
Schedule 40 Pipe
" 1/2"" sch. Pipe
Olney
4535
1.05
0.113
0.4
5.888
Schedule 40 Pipe
"3/4"" sch. Pipe
Wylie
2257
1.05
0.113
0.4
5.888
Schedule 40 Pipe
"3/4"" sch. Pipe
Olney
5435
1.315
0.133
0.593
7.427
Schedule 40 Pipe
" 1"" sch. Pipe
Olney
14124
1.315
0.133
0.593
7.427
Schedule 40 Pipe
" 1"" sch. Pipe
Olney
3736
1.66
0.14
0.802
9.55
Schedule 40 Pipe
" 1 1/4"" sch. Pipe
Wylie
730
1.9
0.145
0.959
11.027
Schedule 40 Pipe
" 1 1/2"" sch. Pipe
Olney
2138
1.9
0.145
0.959
11.027
Schedule 40 Pipe
" 1 1/2"" sch. Pipe
Olney
4863
2.375
0.154
1.289
13.955
Schedule 40 Pipe
" 2"" sch. Pipe
Olney
13512
2.875
0.203
2.045
16.789
Schedule 40 Pipe
" 2 1/2"" sch. Pipe
Olney
5020
3.5
0.216
2.621
20.631
Schedule 40 Pipe
" 3"" sch. Pipe
Wylie
08465
3.5
0.216
Schedule 40 Pipe
" 3"" sch. Pipe
Olney
7711
4.5
0.237
3.809
26.785
Schedule 40 Pipe
" 4"" sch. Pipe
Wylie
1408
4.554
0.237
3.857
27.125
Schedule 40 Pipe
" 4"" sch. Pipe
Olney
7926
5.563
0.258
5.16
33.332
Schedule 40 Pipe
" 5"" sch. Pipe
Olney
3623
6.625
0.28
6.698
39.867
Schedule 40 Pipe
" 6"" sch. Pipe
Olney
11900
0.842
0.148
0.387
4.36
Schedule 80 Pipe
" 1/2"" sch. Pipe
Wylie
6999
1.315
0.179
0.766
Schedule 80 Pipe
" 1"" sch. Pipe
Olney
13012
1.66
0.191
1.057
9.23
Schedule 80 Pipe
" 1/4"" sch. Pipe
Olney
7495
1.9
0.2
1.282
10.681
Schedule 80 Pipe
" 1/2"" sch. Pipe
Olney
9355
2.375
0.218
1.772
13.553
Schedule 80 Pipe
" 2"" sch. Pipe
Wylie
8469
2.375
0.218
1.772
13.553
Schedule 80 Pipe
" 2"" sch. Pipe
Olney
18055
4.5
0.337
5.288
26.157
Schedule 80 Pipe
" 4"" sch. Pipe
