Die Profile

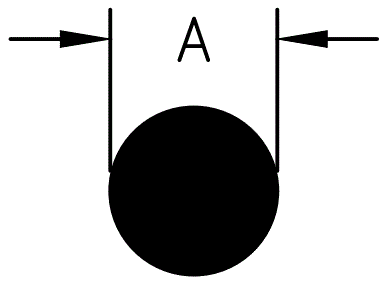

Rod
Solid round profile used in machining, fabrication, and industrial applications. Tower’s aluminum rod is extruded to precise tolerances and available in multiple diameters for consistent performance and machinability.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
13219
0.185
0.032
0.581
Olney
5301
0.25
0.059
0.785
Olney
7171
0.312
0.092
0.98
Olney
966
0.368
0.127
1.156
Olney
14496
0.375
0.132
1.178
Wylie
11498
0.438
0.18
1.374
Olney
2093
0.5
0.235
1.571
Olney
2094
0.625
0.368
1.964
Olney
2095
0.75
0.53
2.356
Olney
9924
0.938
0.829
2.947
Olney
14229
0.984
0.912
3.091
Olney
4911
1
0.924
3.142
Olney
134
1.25
1.472
3.927
Olney
3984
1.312
1.62
4.12
Olney
15124
1.375
1.782
4.32
Olney
135
1.5
2.12
4.712
Olney
10857
1.625
2.489
5.105
Olney
9974
1.75
2.886
5.498
Olney
1405
2
3.77
6.283
Olney
13461
2.031
3.888
6.381
Olney
21985
2.25
4.771
8.897
Olney
2299
2.5
5.891
7.854
Olney
3528
2.625
6.494
8.297
Olney
2096
3
8.483
9.425
Olney
13537
3.547
11.857
11.143
