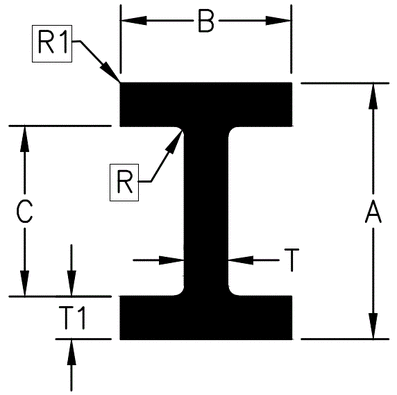

I-Beam Shape
High-strength structural profile used in load-bearing and support applications. Tower’s I-beam shapes are extruded to precise tolerances and engineered for rigidity, strength, and efficient load distribution.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
3260
1
1.187
0.87
0.055
0.065
0.015
0.015
0.228
6.264
Olney
9802
1.25
1.25
1.074
0.088
0.088
0.047
0.01
0.379
7.243
Olney
5383
1.5
2
1.25
0.125
0.125
0.01
0.01
0.787
10.75
Olney
8215
1.5
1
1.25
0.125
0.125
0.01
0.01
0.488
6.75
Olney
10448
1.969
3.15
0.985
0.394
0.492
0.01
0.01
4.186
15.75
Olney
1954
3
2
2.688
0.156
0.156
0.031
0.031
1.252
13.512
Olney
5521
3
2.325
2.28
0.17
0.2
0.266
0.01
2.102
13.915
Olney
14226
3
2
2.75
0.125
0.125
0.156
0.125
1.022
13.246
Olney
2188
3.124
2
3
0.125
0.062
0.01
0.01
0.748
13.752
Olney
14563
4
2.375
3.344
0.17
0.25
0.25
0.078
2.249
17.087
Olney
15487
4
3
3.42
0.17
0.29
0.25
0.02
2.85
19.239
Olney
11764
4
2.25
3.5
0.25
0.25
0.25
0.015
2.465
16.071
Olney
13965
4
2
3.74
0.13
0.13
0.05
0.02
1.21
15.585
Olney
13627
4
3
3.48
0.188
0.29
0.375
0.015
2.8
18.87
Olney
16019
4
3
3.75
0.125
0.125
0.062
0.062
1.458
19.429
Olney
11414
4
3
3.54
0.15
0.23
0.25
0.031
2.356
19.164
Olney
6936
4
4
3.4
0.25
0.3
0.25
0.01
3.965
23.072
Olney
11928
4
2.66
2.75
0.19
0.19
0.29
0.015
2.664
17.041
Olney
4778
4.04
3
3.852
0.094
0.094
0.2
0.01
1.294
21.194
Olney
13581
4.54
7.375
4.04
0.375
0.25
0.09
0.015
6.252
37.676
Olney
5138
5
2.5
4.71
0.13
0.145
0.312
0.015
1.644
20.916
Olney
15488
5
3
4.58
0.21
0.21
0.31
0.13
3.503
20.229
Olney
12623
5
2.25
4.624
0.188
0.188
0.125
0.015
2.072
18.409
Olney
10518
5
1.4
4.75
0.125
0.125
0.06
0.015
1.136
15.247
Olney
13782
6
4
5.3
0.21
0.35
0.3
0.015
4.788
27.065
Olney
11202
6
6
5.25
0.4
0.375
0.437
0.015
8.117
34.45
Olney
13525
6
4
5.3
0.21
0.35
0.3
0.015
4.788
27.065
Olney
6950
7
5.5
6.78
0.1
0.11
0.1
0.01
2.832
42.4
Olney
4920
7
3
6.72
0.105
0.14
0.188
0.01
2.17
28.025
Olney
16335
8
8.125
6.846
0.5
0.577
0.313
0.179
13.414
45.911
Olney
14654
8
5
7.18
0.25
0.41
0.3
0.205
7.08
34.281
Olney
14158
8
5
7.18
0.25
0.41
0.3
0.015
7.166
34.985
Olney
13775
8
5
7.18
0.25
0.41
0.3
0.015
7.166
34.985
Olney
1925
8
4
7.46
0.27
0.27
0.37
0.01
4.975
30.427
Olney
13774
8
5
7.3
0.23
0.35
0.3
0.015
6.307
35.025
Olney
15230
10
6
9.18
0.25
0.41
0.41
0.015
8.831
42.796
Olney
15229
10
6
9
0.29
0.5
0.41
0.015
10.505
42.716
Olney
14180
13.873
5
12.873
0.29
0.5
0.375
0.062
10.614
46.313
