Die Profile

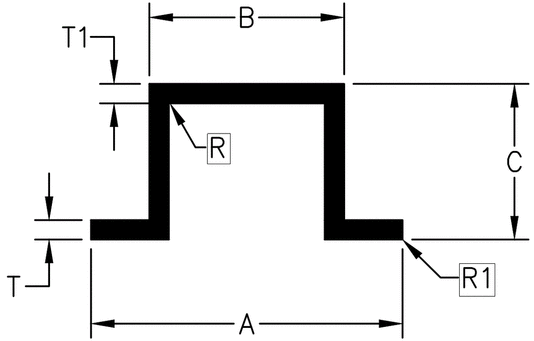

Hat Shape
Reinforcing profile used in panel stiffening, framing, and structural support applications. Tower’s hat shapes are extruded to precise tolerances and available in multiple flange widths, heights, and material thicknesses.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
3274
1.325
0.831
0.625
0.135
0.109
0.016
0.031
0.298
4.878
Olney
140
2.266
0.5
0.687
0.051
0.072
0.187
0.04
0.204
6.067
Olney
12677
2.5
1
1.25
0.109
0.078
0.093
0.109
0.438
9.107
Olney
12683
2.5
1
1
0.093
0.093
0.093
0.031
0.48
8.441
Olney
15433
3
1.25
1
0.075
0.14
0.07
0.032
0.506
9.599
Olney
1692
3
1.25
1
0.125
0.125
0.062
0.01
0.775
9.924
Olney
11342
3
1.5
1.25
0.125
0.125
0.062
0.015
0.787
10.554
Olney
14375
3.25
1.876
0.375
0.063
0.063
0.015
0.03
0.29
7.758
Olney
18273
4.5
2.5
1.875
0.25
0.25
0.015
0.015
2.326
16
Olney
15185
5
2.75
0.93
0.12
0.18
0.031
0.031
1.18
13.108
tapered
Olney
14846
5.5
3
1.25
0.125
0.125
0.125
0.015
1.098
14.706
