Die Profile

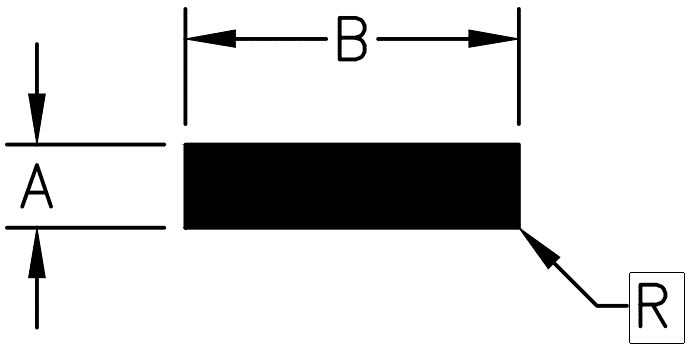

Flat Bar
Solid rectangular profile used in structural, industrial, and fabrication applications. Tower’s flat bars are extruded to precise tolerances and available in a range of widths and thicknesses.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
14244
0.062
1.5
0.015
0.112
3.124
Olney
7295
0.062
2.375
0.01
0.176
4.874
Wylie
2061
0.062
1
0.01
0.074
12.644
Olney
12710
0.09
1
0.032
0.107
2.125
Olney
16038
0.103
0.81
0.015
0.1
1.809
Olney
165
0.105
0.5
0.01
0.064
1.21
Olney
1306
0.125
1.25
0.015
0.187
2.75
Olney
4452
0.125
2
0.015
0.3
4.25
Olney
1045
0.125
1.125
0.015
0.169
2.5
Olney
5829
0.125
1
0.05
0.148
2.164
Olney
1787
0.125
0.75
0.01
0.113
1.75
Olney
1442
0.125
1.5
0.015
0.226
3.25
Olney
2053
0.125
1
0.015
0.15
2.25
Wylie
178
0.125
1
0.015
0.15
2.224
Olney
638
0.125
0.625
0.016
0.094
1.473
Wylie
2448
0.125
1
0.01
0.15
10.781
Wylie
1125
0.125
0.5
0.016
0.076
1.25
Olney
8077
0.125
0.75
0.015
0.113
1.75
Wylie
1647
0.125
2
0.016
0.3
4.223
Olney
10185
0.125
3.8
0.015
0.57
7.85
Olney
13910
0.125
4
0.015
0.6
8.25
Olney
3727
0.125
2.625
0.015
0.394
5.5
Olney
1460
0.125
3
0.015
0.45
6.25
Wylie
1026
0.125
2
0.015
0.3
15.165
Olney
5540
0.125
0.75
0.016
0.113
1.723
Olney
13904
0.125
6
0.015
0.9
12.25
Olney
14117
0.125
7
0.015
1.05
14.25
Olney
1093
0.125
0.5
0.015
0.076
1.25
Olney
2000
0.125
5
0.015
0.75
10.25
Olney
13911
0.16
6
0.015
1.152
12.32
Olney
11631
0.18
9.45
0.015
2.041
19.26
Olney
2112
0.187
2.25
0.015
0.505
4.874
Olney
2113
0.187
3
0.015
0.673
6.374
Olney
2534
0.187
7
0.015
1.571
14.374
Olney
3893
0.187
0.75
0.015
0.168
1.874
Olney
7902
0.188
1.5
0.015
0.338
3.376
Olney
1212
0.188
1
0.015
0.226
2.384
Olney
1975
0.188
1.25
0.015
0.282
2.876
Wylie
131
0.188
1.5
0.016
0.338
3.376
Wylie
630
0.188
4
0.016
0.901
8.325
Wylie
558
0.188
1
0.06
0.226
2.365
Olney
1330
0.188
4
0.015
0.902
8.376
Olney
6987
0.188
2
0.015
0.451
4.376
Olney
1750
0.188
3.5
0.015
0.79
7.376
Olney
1061
0.188
2.5
0.015
0.564
5.376
Wylie
1792
0.188
2
0.015
0.451
10.679
Olney
1478
0.188
0.5
0.015
0.113
1.376
Olney
14287
0.188
12
0.015
2.707
24.376
Olney
13163
0.188
5
0.015
1.128
10.376
Olney
6181
0.188
0.625
0.031
0.14
1.573
Olney
13588
0.2
8
0.031
1.919
16.347
Wylie
1730
0.208
4
0.01
0.998
8.399
Olney
10547
0.22
10
0.015
2.64
20.44
Olney
13652
0.24
9.375
0.015
2.94
19.238
Olney
6208
0.24
0.368
0.031
0.104
1.163
Olney
3895
0.25
0.75
0.015
0.224
1.974
Olney
1120
0.25
1
0.015
0.3
2.5
Wylie
1841
0.25
1.25
0.125
0.359
2.785
Wylie
1549
0.25
0.5
0.016
0.15
1.5
Olney
14225
0.25
1
0.093
0.292
2.34
Olney
819
0.25
1.25
0.01
0.376
3
Olney
1060
0.25
1.5
0.01
0.45
3.5
Olney
12512
0.25
2
0.06
0.596
4.397
Olney
7181
0.25
3.25
0.015
0.975
7
Wylie
789
0.25
3
0.016
0.9
6.5
Olney
14356
0.25
2.5
0.015
0.75
5.5
Olney
13107
0.25
2.5
0.015
0.75
5.5
Olney
759
0.25
2
0.01
0.6
4.5
Olney
2582
0.25
1.75
0.01
0.526
4
Olney
15977
0.25
3.5
0.015
1.05
7.5
Wylie
2796
0.25
2
0.015
0.6
11.639
Wylie
1699
0.25
1.5
0.025
0.45
3.457
Olney
3901
0.25
3
0.015
0.9
6.5
Wylie
1131
0.25
2.5
0.016
0.75
5.497
Wylie
146
0.25
4
0.016
1.2
8.5
Olney
2773
0.25
0.75
0.01
0.226
2
Olney
12142
0.25
5
0.015
1.5
10.5
Olney
629
0.25
0.5
0.015
0.15
1.5
Olney
3843
0.25
4
0.015
1.2
8.5
Olney
12003
0.25
6.5
0.015
1.95
13.5
Olney
13856
0.25
12
0.015
3.6
24.5
Olney
16891
0.25
6
0.015
1.8
12.5
Olney
3101
0.25
7
0.01
2.1
14.5
Olney
6583
0.25
6
0.031
1.799
12.442
Olney
15529
0.25
8
0.015
2.352
16.5
Wylie
2956
0.25
5
0.025
1.5
10.457
Olney
13561
0.266
4
0.015
1.277
8.532
Olney
10491
0.285
4.25
0.015
1.453
9.07
Olney
14497
0.312
2
0.015
0.75
4.624
Olney
3894
0.312
1
0.01
0.374
2.624
Olney
6952
0.312
1.5
0.015
0.562
3.624
Wylie
174
0.312
2
0.016
0.749
4.649
Olney
1743
0.312
1.75
0.015
0.655
4.124
Wylie
1130
0.313
3
0.016
1.124
6.622
Olney
16319
0.337
0.5
0.015
0.202
1.674
Olney
5505
0.375
1.25
0.015
0.563
3.25
Wylie
175
0.375
1.5
0.016
0.674
3.775
Olney
4664
0.375
1.5
0.015
0.674
3.762
Olney
2132
0.375
2.5
0.01
1.126
5.75
Olney
9639
0.375
4
0.015
1.8
8.75
