Equal Leg Angle
Versatile right-angle profile used across structural, architectural, and framing applications. Tower’s equal leg angles are extruded to precise tolerances and available in a range of dimensions, radii, and wall thicknesses.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

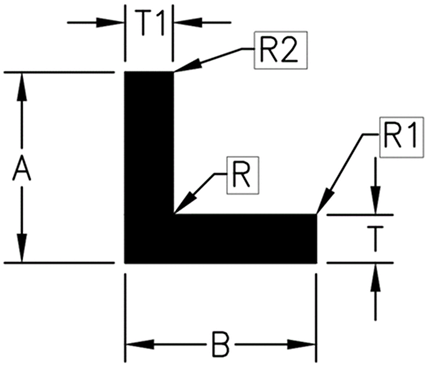

Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
3475
0.5
0.5
0.062
0.062
0.015
0.015
0.015
0.07
2
Wylie
12329
0.5
0.5
0.065
0.065
0.016
0.016
0.016
0.073
2
Olney
1935
0.563
0.563
0.093
0.093
0.01
0.046
0.046
0.113
2.338
Olney
3692
0.75
0.75
0.187
0.187
0.01
0.01
0.01
0.295
3
Wylie
02800
0.75
0.75
0.062
0.062
0.015
0.015
0.015
0.107
3
Olney
2853
0.75
0.75
0.05
0.05
0.015
0.015
0.015
0.088
3
Olney
3889
0.75
0.75
0.094
0.094
0.01
0.01
0.01
0.158
3
Olney
7393
0.75
0.75
0.062
0.062
0.01
0.01
0.01
0.107
3
Olney
3693
0.875
0.875
0.125
0.125
0.01
0.01
0.01
0.244
3.5
Olney
836
1
1
0.062
0.062
0.015
0.015
0.015
0.144
4
Wylie
1648
1
1
0.063
0.063
0.016
0.016
0.016
0.146
3.959
Olney
20490
1
1
0.085
0.085
0.015
0.015
0.015
0.196
4
Olney
1576
1
1
0.188
0.188
0.01
0.01
0.01
0.409
4
Wylie
1011
1
1
0.125
0.125
0.01
0.01
0.01
0.281
17.774
Olney
179
1
1
0.125
0.125
0.015
0.015
0.015
0.281
4
Olney
7921
1
1
0.25
0.25
0.01
0.01
0.01
0.526
4
Wylie
102
1
1
0.125
0.125
0.016
0.016
0.016
0.281
4
Olney
15846
1.062
1.062
0.25
0.25
0.015
0.015
0.015
0.563
4.248
Olney
1477
1.25
1.25
0.125
0.125
0.01
0.01
0.01
0.356
5
Olney
10904
1.25
1.25
0.062
0.062
0.015
0.015
0.015
0.181
5
Olney
10287
1.25
1.25
0.05
0.05
0.01
0.01
0.01
0.148
5
Olney
9350
1.25
1.25
0.187
0.187
0.015
0.015
0.015
0.52
5
Olney
13340
1.25
1.25
0.188
0.188
0.093
0.032
0.093
0.521
4.865
Wylie
02745
1.25
1.25
0.062
0.062
0.015
0.015
0.015
0.181
5
Wylie
02015
1.375
1.375
0.062
0.062
0.015
0.015
0.015
0.2
5.5
Olney
6732
1.5
1.5
0.188
0.188
0.01
0.01
0.01
0.635
6
Olney
7922
1.5
1.5
0.25
0.25
0.01
0.01
0.01
0.826
6
Olney
957
1.5
1.5
0.125
0.125
0.015
0.015
0.015
0.431
6
Wylie
136
1.5
1.5
0.188
0.188
0.016
0.016
0.016
0.635
6
Olney
1445
1.5
1.5
0.062
0.062
0.01
0.01
0.01
0.218
6
Wylie
918
1.5
1.5
0.49
0.49
0.063
0.063
0.063
1.471
5.863
Wylie
00624
1.5
1.5
0.125
0.125
0.016
0.016
0.016
0.431
6
Olney
6834
1.75
1.75
0.125
0.125
0.01
0.01
0.01
0.506
7.16
Serrated
Olney
11886
1.75
1.75
0.188
0.188
0.015
0.015
0.015
0.748
7
Wylie
2744
1.75
1.75
0.06
0.06
0.015
0.015
0.015
0.247
6.961
Olney
4505
2
2
0.05
0.05
0.01
0.01
0.01
0.238
7.987
Olney
1185
2
2
0.188
0.188
0.01
0.01
0.01
0.86
8
Olney
20829
2
2
0.125
0.125
0.025
0.062
0.062
0.574
7.828
.125 R. outside corner
Olney
9993
2
2
0.115
0.115
0.01
0.01
0.01
0.536
8
Wylie
127
2
2
0.125
0.125
0.016
0.016
0.016
0.581
8
Wylie
00501
2
2
0.125
0.125
0.01
0.01
0.01
0.581
8
Olney
667
2
2
0.25
0.25
0.01
0.01
0.01
1.126
8
Olney
2449
2
2
0.125
0.125
0.01
0.01
0.01
0.581
8
Olney
13068
2
2
0.25
0.25
0.093
0.032
0.032
1.124
7.865
Olney
9442
2.25
2.25
0.25
0.25
0.01
0.01
0.01
1.276
9
Wylie
418
2.5
2.5
0.375
0.375
0.016
0.016
0.016
2.081
10.025
Olney
14914
2.5
2.5
0.125
0.125
0.015
0.015
0.015
0.731
10
Olney
8548
3
3
0.09
0.09
0.01
0.01
0.01
0.638
12
Olney
9591
3
3
0.188
0.188
0.015
0.015
0.015
1.312
12
Olney
9908
3
3
0.375
0.375
0.01
0.01
0.01
2.531
12
Olney
13575
3
3
0.125
0.125
0.015
0.015
0.015
0.881
12
Olney
3102
3
3
0.25
0.25
0.01
0.01
0.01
1.726
12
Olney
9424
3
3
0.5
0.5
0.01
0.01
0.01
3.3
12
Olney
3036
4
4
0.25
0.25
0.01
0.01
0.01
2.326
16
Olney
15161
4
4
0.1
0.1
0.016
0.016
0.016
0.948
16
Olney
13460
4
4
0.5
0.5
0.25
0.03
0.03
4.514
15.822
* 45° x .030 CHAMFER
Olney
10988
4
4
0.188
0.188
0.015
0.015
0.015
1.763
16
Olney
9541
4
4
0.375
0.375
0.437
0.01
0.01
3.48
15.812
Olney
11513
5
5
0.5
0.5
0.25
0.03
0.03
5.714
19.822
*45° x .030 CHAMFER
Olney
7664
6
6
0.125
0.125
0.03
0.01
0.01
1.781
23.987
*Special Inq. Only*
