Die Profile

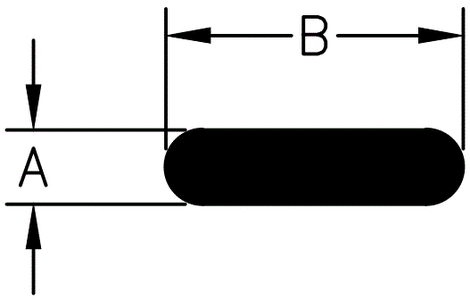

Bus Bar
Solid conductive profile used in electrical distribution and power systems. Tower’s aluminum bus bars are extruded to precise tolerances and available in a range of widths and thicknesses for efficient current flow.
Available Die Specifications
Standard die configurations.
Each listing represents a verified die currently available for production. Contact sales for pricing, alloy availability, or to discuss a modified version of an existing profile.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Location
Die #
A
B
C
T
T1
T2
R
R1
R2
Wt/Ft
Perim
Pipe
Special Notes
Olney
187
0.072
1.75
0.15
3.582
Wylie
709
0.08
3
0.287
6.091
Olney
11384
0.094
0.75
0.083
1.607
Olney
2759
0.125
1.125
0.164
2.393
Olney
10073
0.125
0.875
0.127
1.893
Olney
3160
0.125
0.875
0.127
1.893
Olney
13692
0.188
1.5
0.329
3.215
Olney
3548
0.25
1.5
0.434
3.285
Olney
3626
0.25
1
0.284
2.285
Olney
3627
0.25
8
2.384
16.285
Olney
3551
0.25
3
0.884
6.285
Olney
3550
0.25
2.5
0.734
5.285
Olney
15245
0.25
2.25
0.659
4.785
Olney
3549
0.25
2
0.584
4.285
Olney
3554
0.25
6
1.784
12.285
Olney
3553
0.25
5
1.484
10.285
Olney
13402
0.375
2
0.864
4.428
Olney
4909
0.375
4
1.764
8.43
Wylie
973
0.375
2
0.864
4.453
Olney
4926
0.375
6
2.664
12.43
Olney
10753
0.438
2
1.002
4.5
Olney
13350
0.5
8
4.735
16.571
Olney
619
0.5
1.5
0.835
3.571
Olney
11630
0.945
3.306
3.52
